xkcd

Type xkcd_comic · needs the internet.

A random comic (or the newest one) from xkcd.com by Randall Munroe, with its number and title ("1112: Think Logically") and its hover text (the "alt text" that the website shows when the mouse is over the comic).

At each update it picks a random comic, from the first one to the newest. With comic = "newest" it shows the newest comic instead; when the newest comic is too large or has no picture, that update shows a random comic, and the next update tries the newest again. Some comics are too large to read on an e-paper screen, and some are interactive pages without a picture. Those are skipped and another comic is picked, up to tries times. If none of them is suitable, the update fails, and PaperPi tries again at the next update.

Comics smaller than the space on the screen are enlarged to fill it, but at most to twice their own size, so their lines don't get blocky. A comic that would be enlarged more than 1.5 times (on large screens, such as the 9.7" one) is downloaded from xkcd's double-size picture instead (name_2x.png, which xkcd has for many comics), so it stays sharp; when there is none, the normal picture is used. With enlarge = false comics keep their own size. Comics larger than the space are always made smaller to fit.

The plugin uses xkcd's own JSON interface (a small file per comic that lists its number, title, hover text and picture). Each update downloads two small files, the newest comic's number and the chosen comic's details, and then the comic's picture (at most 5 MB; usually tens to a few hundred kB). For the newest comic, one small file is enough. Skipped comics add more downloads, and so does looking for the double-size picture (one more download, only for comics enlarged more than 1.5 times). Pictures come only from xkcd's picture server (imgs.xkcd.com, over https), and only PNG, JPEG and GIF files are used. It saves nothing in its storage folder.

Layouts

Layout	Shows
comic_title_alttext (default)	the comic, its title on one line, and the hover text on up to 3 lines
comic_title	the comic and its title, on up to 2 lines
comic_only	only the comic

The title is in Lato Bold and the hover text in Lato Italic. Long titles and hover texts are drawn smaller; text that still doesn't fit ends with "…". The font is Lato by Łukasz Dziedzic, under the SIL Open Font License (fonts/Lato-OFL.txt).

Settings

Setting	Default	Meaning
comic	"random"	"random": a random comic; "newest": the newest comic (a random one when the newest can't be shown)
max_width	800	comics wider than this many pixels are skipped (at most 4000)
max_height	600	comics taller than this many pixels are skipped (at most 4000)
tries	10	how many random comics to try (1 to 20) before the update fails, when they are too large or have no picture
enlarge	true	enlarge comics that are smaller than the space on the screen, at most to twice their size; false: they keep their own size

It suggests a refresh every 20 minutes.

In the config file (every other setting is in the settings reference):

[[plugin]]
id = "xkcd_comic-33b69a4a"
name = "xkcd"
type = "xkcd_comic"
layout = "comic_title"   # optional; without it: comic_title_alttext
comic = "newest"
max_width = 1000

Try it without a screen: uv run paperpi render xkcd_comic (sample comic), or with a random comic from xkcd.com: uv run paperpi render xkcd_comic --live.

Licence of the comics

The comics are Randall Munroe's work, under the Creative Commons Attribution-NonCommercial 2.5 licence (see xkcd.com/license.html): they may be shared with credit, but not sold. The sample comic, sample/think_logically.png (xkcd 1112, "Think Logically"), and the sample images made from it are under that licence, not PaperPi's; see sample/LICENSE.

All settings

Made from the plugin's code, so always up to date.

Setting	Default	What it does
comic	"random"	Which comic: a random one, or the newest one (a random one when the newest can't be shown)
max_width	800	Comics wider than this many pixels are skipped
max_height	600	Comics taller than this many pixels are skipped
tries	10	How many random comics to try before giving up, when they are too large or have no picture
enlarge	true	Enlarge comics that are smaller than the space on the screen, at most to twice their size (else they keep their own size)

Its suggestions for settings every plugin has (a block that sets one of them uses that value instead):

Setting	Default	What it does
refresh	1200	Seconds between updates (at least 5). Leave it out to use the plugin's suggestion
level	"rotation"	When it is shown: alert, interrupt or rotation. Leave it out to use the plugin's suggestion
layout	"comic_title_alttext"	Which layout (see the plugin's page). Leave it out to use the first
storage_mb	500	Most megabytes this plugin may keep in its storage folder; over it, the files changed longest ago are removed first. Leave it out to use the plugin's suggestion
storage_days	30	Files the plugin has not changed for this many days are removed (0 = keep them). Leave it out to use the plugin's suggestion

Sample images

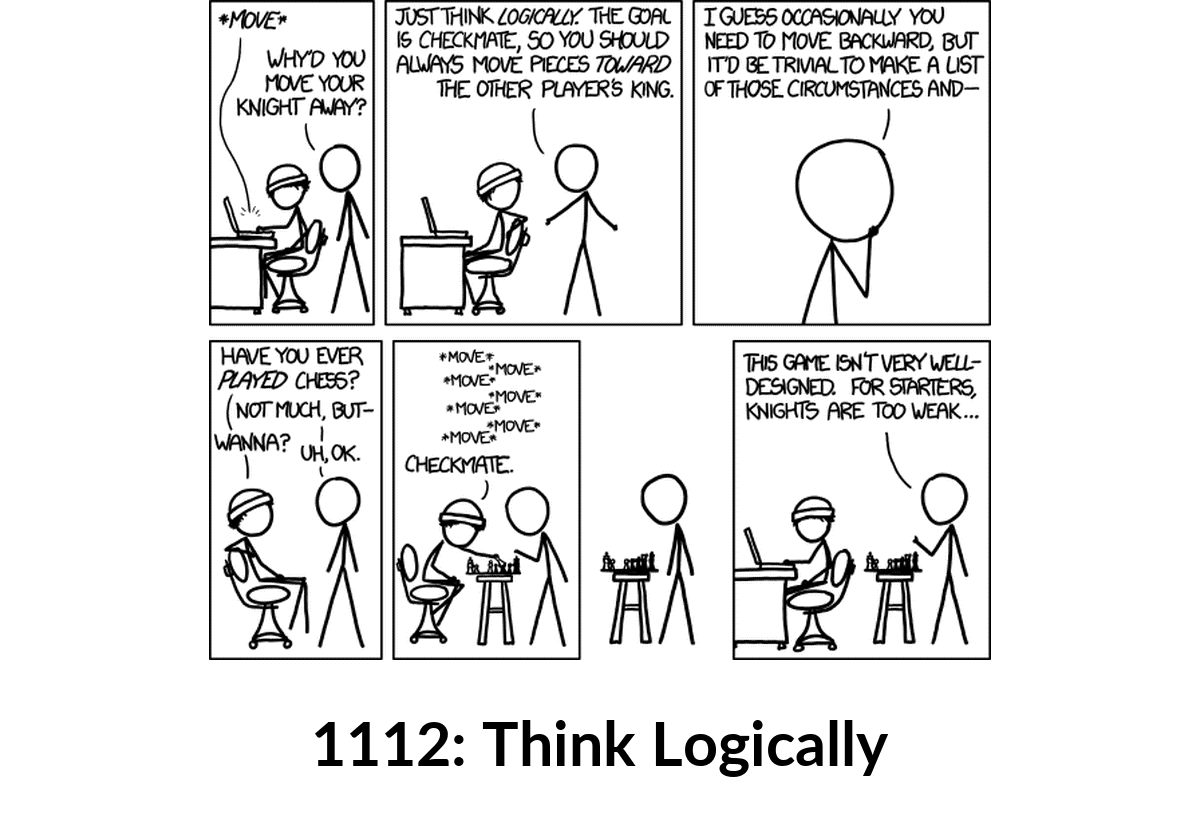

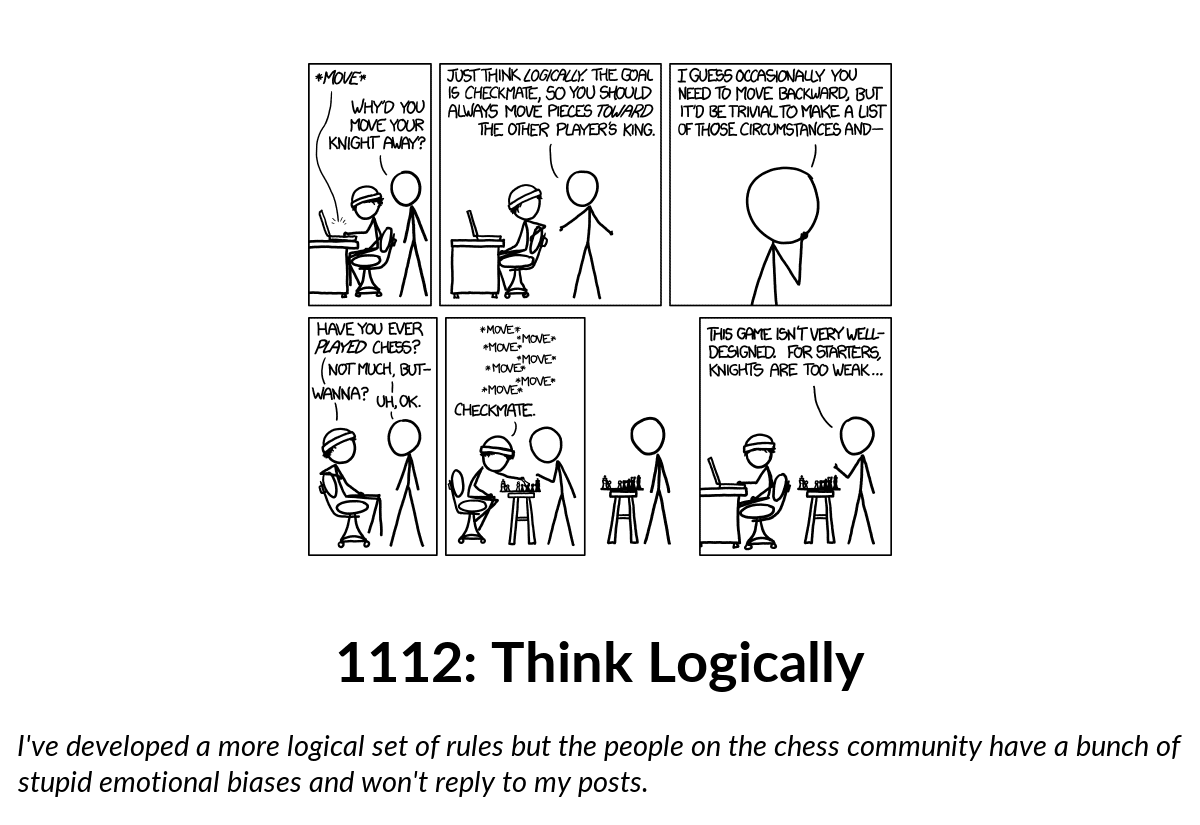

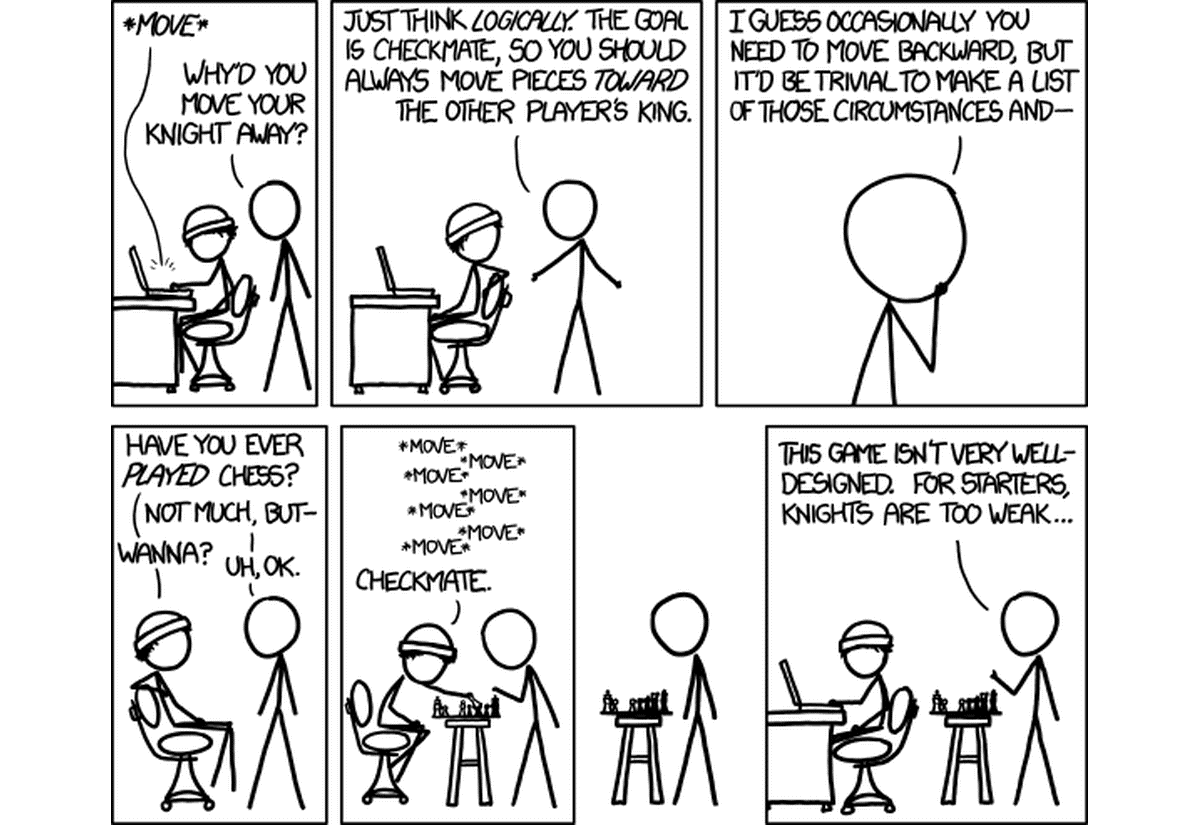

All sample images are in tests/images/, named xkcd_comic-<layout>[-own-size]-<screen>.png, where <screen> is 9in7 (9.7", 1200x825, 16 grays), 7in5 (7.5", 800x480, black and white) or 5in65 (5.65", 600x448, 7 colours). own-size shows enlarge = false.

comic_title_alttext, 9.7"	comic_title, 9.7"	comic_only, 9.7"	comic_title_alttext, own size, 9.7"
